Toggle Injection Molding Machine
Toggle injection molding machines for efficient plastic manufacturing.
Toggle Injection Molding Machines for Efficient Plastic Manufacturing
Clamping performance is one of the most important factors in injection molding. The clamping system must keep the mold securely closed during injection while providing controlled mold opening, closing and ejection.
A toggle injection molding machine uses a toggle-link mechanism to generate and maintain the required clamping force. Toggle-type machines are widely considered for applications where manufacturers require efficient mold movement, repeatable clamping performance and productive injection molding cycles.
Boss Automation develops injection molding solutions focused on speed, precision, energy efficiency, safety and cycle stability, which are important considerations when evaluating toggle-type injection molding equipment.
What Is a Toggle Injection Molding Machine?
A toggle injection molding machine uses a mechanical toggle-link mechanism to operate the mold-clamping system. The basic molding process remains:
Mold Closing → Clamping → Injection → Holding → Cooling → Mold Opening → Ejection
The toggle mechanism converts the movement of the machine's drive system into the required mold-closing and clamping action. Compared with other clamping arrangements, toggle systems are particularly known for:
- Fast mold movement
- Compact mechanism
- Efficient clamping
- Repeatable operation
- Suitable high-cycle production
The actual performance depends on the machine design, toggle geometry, drive system, mold and application.
How Does a Toggle Clamping System Work?
The toggle mechanism consists of interconnected links that move through a controlled sequence.
Mold Opening
The toggle links retract and the mold opens.
Mold Closing
The links move forward to bring the mold halves together.
Locking Position
As the toggle mechanism approaches its fully extended position, it develops the required clamping force.
Injection
The mold remains securely closed while molten plastic is injected into the cavity.
Mold Opening
After cooling, the toggle mechanism retracts and opens the mold for part removal.
This sequence is repeated automatically for each production cycle.
Advantages of Toggle Injection Molding Machines
Fast Mold Opening and Closing
Toggle mechanisms can provide rapid mold movement, making them suitable for applications where cycle efficiency is important. Reducing unnecessary mold movement time can contribute to overall production productivity.
Efficient Clamping
The toggle mechanism provides mechanical leverage as it approaches the locked position, allowing the machine to generate the required clamping force efficiently.
Suitable for High-Cycle Production
Toggle machines can be particularly attractive for applications involving repeated production cycles. Potential applications include:
- Packaging
- Household products
- Electrical components
- Consumer products
- Automotive components
- Industrial plastic parts
Compact Clamping Mechanism
The toggle mechanism can provide a relatively compact clamping arrangement while delivering the required mold movement and clamping force — useful where factory floor space and machine layout are important considerations.
Toggle vs Hydraulic Clamping
A comparison can help buyers understand the basic difference.
| Feature | Toggle Clamping | Hydraulic Clamping |
|---|---|---|
| Clamping mechanism | Mechanical toggle links | Hydraulic system |
| Mold movement | Typically fast | Application dependent |
| Clamping generation | Mechanical leverage | Hydraulic pressure |
| High-cycle applications | Well suited | Also possible |
| Mechanism | Link-based | Hydraulic |
| Maintenance | Requires toggle/link inspection and lubrication | Requires hydraulic-system maintenance |
| Machine selection | Application dependent | Application dependent |
Important: Neither system is universally better. The appropriate clamping technology depends on the product, mold, cycle requirements, machine design and manufacturer's engineering approach.
Toggle Injection Molding Applications
Packaging
Toggle machines can be used for various high-volume packaging applications where fast and repeatable cycles are required. Potential products include:
- Containers
- Lids
- Caps
- Packaging components
Household Products
- Storage products
- Kitchen accessories
- Household components
- Consumer plastic products
Electrical Components
- Housings
- Covers
- Switch components
- Electrical accessories
Automotive Components
Depending on machine capacity and application, toggle machines can be used for selected:
- Interior components
- Clips
- Covers
- Housings
- Functional plastic parts
Toggle Machine and Cycle Time
Total cycle time includes:
Mold Closing → Injection → Holding → Cooling → Mold Opening → Ejection
The toggle mechanism can contribute to cycle efficiency through rapid mold opening and closing. However, mold movement is only one part of the total cycle — for many products, cooling time can be a major component of the cycle. Therefore, cycle-time optimization should consider:
- Toggle movement
- Injection time
- Holding time
- Cooling time
- Ejection
- Mold design
- Product thickness
- Material
A fast clamping mechanism alone does not guarantee a short overall cycle.
Toggle Injection Molding and Automation
Toggle injection molding machines can be integrated into automated production cells. A typical setup may include:
Toggle Injection Molding Machine → Robot → Conveyor → Inspection → Counting → Packaging
Automation can help reduce repetitive manual operations and maintain consistent production flow. Boss Automation's published service capabilities include support for robot systems and production-line inspection and control.
Possible Auxiliary Systems
- Robotic part removal
- Automatic material loaders
- Conveyors
- Vision inspection
- Counting systems
- Packaging equipment
Toggle Injection Molding for High-Volume Production
Toggle machines can be considered for production environments where machines operate continuously over long periods. High-volume production benefits from:
- Repeatable mold movement
- Stable clamping
- Fast cycles
- Automated part removal
- Consistent machine operation
However, the actual production output depends on the machine + mold + material + cooling + automation.
What Should You Consider Before Buying a Toggle Machine?
Clamping Force
The machine must provide sufficient force for the mold and product.
Mold Size
Check:
- Tie-bar spacing
- Mold thickness
- Mold weight
- Mold opening requirements
Injection Capacity
Verify:
- Screw diameter
- Shot capacity
- Injection pressure
- Injection speed
Cycle Requirements
Consider:
- Required production quantity
- Target cycle time
- Number of cavities
- Cooling time
Automation
Determine whether you require:
- Robot
- Conveyor
- Automatic material handling
- Inspection
- Packaging
Boss Automation and Toggle Injection Molding
Boss Automation's technology positioning focuses on five key areas — highly relevant when evaluating an injection molding machine for repetitive and automated plastic production. Boss Automation also has dedicated engineering and service capabilities covering mechanical, hydraulic and electronic systems, along with machine parameters, mold setting, robot systems and production-line inspection/control.
High Speed • High Precision • High Energy Saving • High Safety • High Cycle Stability
Toggle Clamping Mechanism in Injection Molding
The clamping system is responsible for keeping the mold closed while plastic material is injected under pressure. In a toggle injection molding machine, the clamping unit uses interconnected mechanical links to open, close and lock the mold. A simplified sequence is:
Mold Open → Mold Close → Toggle Extension → Clamping → Injection → Cooling → Toggle Retraction → Mold Open
Why Toggle Clamping Is Important
During injection, molten plastic creates pressure inside the mold cavity. The clamping system must provide enough force to prevent the mold halves from separating. If the available clamping force is insufficient, manufacturers may experience defects such as:
- Flash
- Parting-line leakage
- Dimensional variation
- Inconsistent product quality
Therefore, correct clamping-force selection is essential.
Clamping Force Selection
The required force depends on product projected area, number of cavities, material, injection pressure and mold design. A simplified concept is:
Required Clamping Force ≈ Projected Area × Cavity Pressure
Actual engineering calculations should use appropriate safety factors and application-specific parameters. Machine selection should be based on the actual product and mold data rather than using a generic tonnage estimate.
Toggle Injection Molding Machine vs Hydraulic Clamping
Both toggle and hydraulic clamping technologies are used in injection molding.
Toggle Clamping
A toggle mechanism uses mechanical links to generate clamping force. Potential advantages include:
- Fast mold movement
- Efficient mechanical leverage
- Suitable for repetitive production
- Compact clamping arrangement
Hydraulic Clamping
Hydraulic systems use hydraulic pressure to generate and control clamping force. Potential advantages can include:
- Flexible force control
- Different machine configurations
- Well-established hydraulic technology
The best option depends on the machine design, application, production requirements and manufacturer's engineering.
Mold Compatibility
A toggle injection molding machine must be physically compatible with the customer's mold. Check:
Tie-Bar Spacing
The mold must fit between the machine's tie bars.
Mold Thickness
Minimum and maximum mold thickness must fall within the machine's operating range.
Mold Opening Stroke
The machine must provide sufficient opening distance for safe product removal.
Mold Weight
The clamping system must safely support the mold.
Ejection: the machine's ejector system must match the mold's ejection requirements.
Toggle Machine and Cycle-Time Optimization
Cycle Time = Mold Movement + Injection + Holding + Cooling + Ejection
Toggle machines can contribute to cycle efficiency through rapid mold opening and closing. However, manufacturers should pay particular attention to cooling — for many plastic products, cooling represents a significant portion of the molding cycle. Therefore, improvements may come from:
- Better mold cooling
- Optimized injection parameters
- Efficient mold movement
- Proper material selection
- Improved ejection
- Multi-cavity mold design
Servo Technology and Toggle Injection Molding
A servo-driven system can be combined with an appropriately designed injection molding machine to provide responsive machine movement and optimized energy usage.
Boss Automation's published technology philosophy includes High Energy Saving, along with High Speed, High Precision, High Safety and High Cycle Stability. For manufacturers operating machines for long production hours, energy consumption should be evaluated as part of the total cost of ownership.
Potential Benefits
- Precise machine control
- Responsive movement
- Optimized energy consumption
- Stable production cycles
- Reduced unnecessary machine operation
Toggle Injection Molding for High-Speed Production
Toggle systems can be suitable for applications requiring frequent mold opening and closing. High-speed production can benefit from:
Fast Mold Movement + Stable Clamping + Efficient Injection + Effective Cooling
The final production speed still depends on the complete machine and mold configuration. This is especially important for:
- Packaging
- Containers
- Caps and closures
- Household products
- Small plastic components

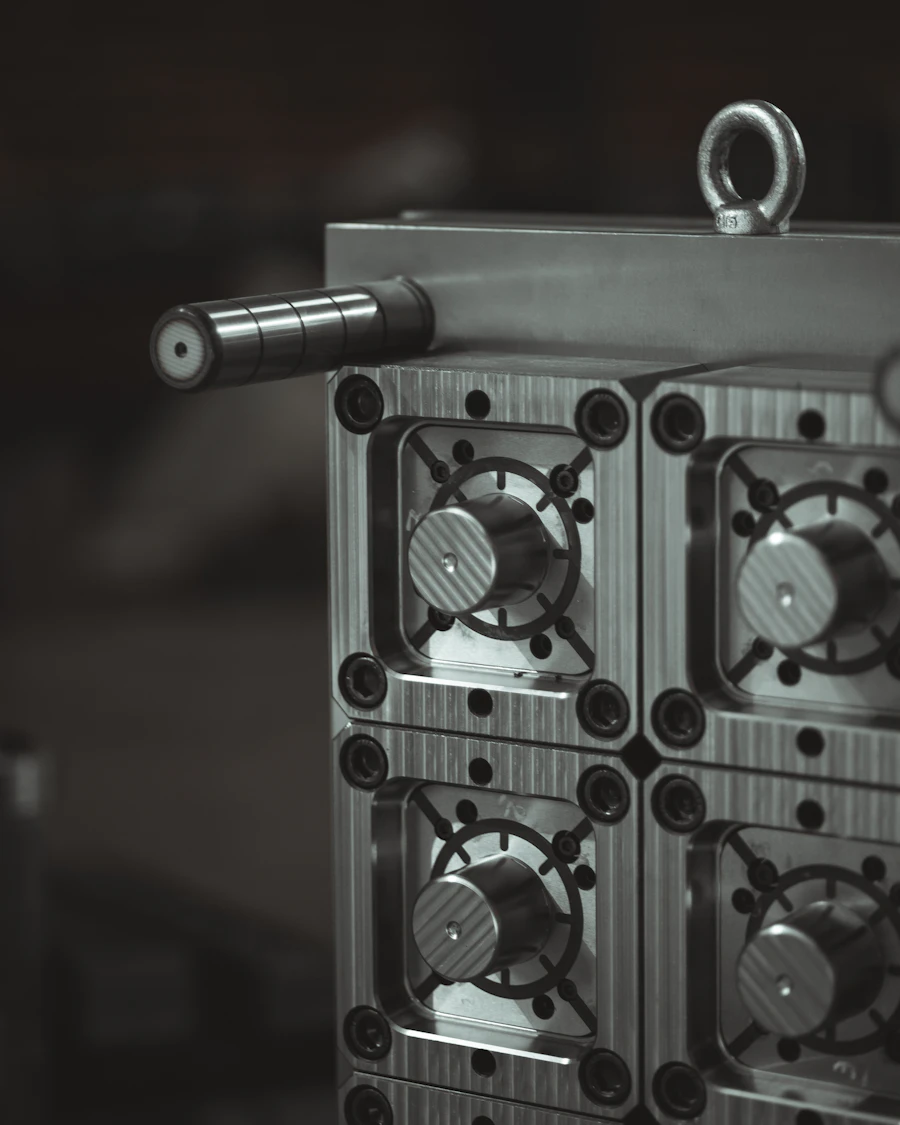

Multi-Cavity Molds and Toggle Machines
Multi-cavity molds allow multiple components to be manufactured in a single cycle. For example, 4 cavities at a 10-second cycle gives a theoretical production capacity of:
4 × 3600 ÷ 10 = 1,440 parts/hour
Increasing cavity count can increase output, but it also increases requirements for:
- Clamping force
- Injection capacity
- Mold balance
- Cooling
- Ejection
The machine must therefore be properly matched to the mold.
Automation Integration
A toggle injection molding machine can be integrated with automation equipment to create a continuous production cell. A typical arrangement can be:
Automatic Material Loader → Toggle Injection Molding Machine → Robot → Conveyor → Inspection → Counting / Packaging
This can reduce repetitive manual handling and help maintain production consistency. Boss Automation's service information includes robot systems and production-line inspection and control among its capabilities.
Maintenance of Toggle Injection Molding Machines
Toggle machines require regular inspection because the clamping mechanism contains moving mechanical components.
Regular Checks
Inspect:
- Toggle links
- Pins and bushings
- Lubrication points
- Tie bars
- Clamping mechanism
- Hydraulic components
- Electrical systems
- Safety systems
Lubrication
Proper lubrication is particularly important for moving toggle components. Insufficient lubrication can contribute to:
- Increased friction
- Wear
- Noise
- Reduced mechanism life
- Unstable operation
Always follow the maintenance schedule and lubrication specifications provided by the machine manufacturer.
Common Problems and Possible Causes
Flash
- Insufficient clamping force
- Mold wear
- Excessive injection pressure
- Incorrect process parameters
Uneven Product Dimensions
- Mold problems
- Process variation
- Material variation
- Injection inconsistency
Slow Mold Movement
- Mechanical wear
- Lubrication problems
- Drive/hydraulic issues
- Incorrect machine settings
Excessive Toggle Wear
- Insufficient lubrication
- Misalignment
- Excessive loading
- Lack of preventive maintenance
Troubleshooting should always be based on the actual machine, mold and process conditions.
Choosing the Right Toggle Injection Molding Machine
Before requesting a quotation, prepare:
Product Information
- Product weight
- Dimensions
- Material
Mold Information
- Mold dimensions
- Number of cavities
- Mold weight
- Projected area
Production Information
- Required quantity
- Target cycle time
- Number of shifts
Automation Information
- Robot requirement
- Material handling
- Inspection
- Packaging
This allows the machine manufacturer to recommend a more suitable configuration.
How to Select the Right Toggle Injection Molding Machine
The correct toggle injection molding machine depends on the product, mold, material and production target. Before selecting a machine, evaluate the following.
Product Requirements
- Product weight
- Product dimensions
- Wall thickness
- Material
- Surface-finish requirements
- Required production quantity
Mold Requirements
- Number of cavities
- Mold dimensions
- Mold weight
- Projected area
- Required mold opening
- Ejection arrangement
Machine Requirements
- Clamping force
- Injection capacity
- Injection pressure
- Injection speed
- Screw diameter
- Mold dimensions
- Ejector capacity
- Cycle requirements
Toggle Machine Production Calculation
For a multi-cavity mold, theoretical production can be estimated using:
Production/hour = Number of cavities × 3600 ÷ Cycle time (seconds)
Example: an 8-cavity mold operating at a 12-second cycle → 8 × 3600 ÷ 12 = 2,400 parts/hour. Actual output will depend on machine utilization, mold performance, downtime, rejection and automation efficiency. This calculation is useful when deciding whether the machine's production capacity matches the customer's requirements.
Toggle Injection Molding Machine for Automated Production
A toggle machine can be incorporated into an automated production cell. A typical system can include:
Toggle Injection Molding Machine → Robot Part Removal → Conveyor → Inspection → Counting → Packaging
For high-volume production, this type of setup can reduce manual handling and maintain a more consistent production flow.
Energy Efficiency
Energy efficiency should be evaluated alongside production speed. Manufacturers operating injection molding machines for long hours should consider:
- Drive-system efficiency
- Machine utilization
- Idle-time energy consumption
- Cycle time
- Heating efficiency
- Hydraulic/servo performance
Boss Automation's stated 5H philosophy includes High Energy Saving along with High Speed, High Precision, High Safety and High Cycle Stability. The actual energy consumption of any machine should be evaluated using the manufacturer's verified model-specific data.
Maintenance Checklist
Regular preventive maintenance can help maintain reliable toggle-machine operation.
Daily
- Check lubrication
- Inspect for oil leakage
- Check machine alarms
- Check safety devices
- Inspect unusual noise or vibration
- Keep machine clean
Periodic
- Inspect toggle links
- Check pins and bushings
- Inspect tie bars
- Verify lubrication system
- Check hydraulic components
- Inspect electrical connections
- Check sensors
- Inspect injection screw and barrel
The exact maintenance intervals should follow the machine manufacturer's recommendations.
Frequently Asked Questions
What is a toggle injection molding machine?
A toggle injection molding machine uses a mechanical toggle-link mechanism to open and close the mold and generate the required clamping force during injection molding.
What are the advantages of a toggle injection molding machine?
Depending on machine design, toggle systems can provide fast mold movement, efficient clamping and repeatable operation, making them suitable for many high-cycle applications.
Is a toggle machine better than a hydraulic injection molding machine?
Not necessarily. Both technologies have advantages. The appropriate system depends on the product, mold, cycle requirements, machine design and production application.
What products can be manufactured using a toggle machine?
Applications can include packaging products, containers, household products, electrical components, consumer products, automotive components and industrial plastic parts.
How is the required clamping force determined?
It depends on projected area, cavity count, injection pressure, material and mold design. The machine should be selected using actual product and mold data.
Can toggle machines be automated?
Yes. They can be integrated with robots, conveyors, material loaders, inspection systems and packaging equipment.
Are toggle machines suitable for high-speed production?
They can be suitable for high-cycle applications because the toggle mechanism can provide rapid mold opening and closing. However, complete cycle time also depends on injection, cooling, ejection and mold design.
Does a toggle machine require special maintenance?
The toggle mechanism requires regular inspection and proper lubrication of moving components. Maintenance requirements depend on the specific machine design.
Why Choose Boss Automation?
Boss Automation was established in 2000 in Rajkot, Gujarat, and has developed injection molding technology through continued manufacturing and engineering development.
High Speed | High Precision | High Energy Saving | High Safety | High Cycle Stability
The company also maintains capabilities across:
- Mechanical engineering
- Hydraulic systems
- Electronic controls
- R&D
- Production
- Quality control
- Technical service
Its service capabilities include machine parameters, maintenance, mold setting, robot systems and production-line inspection and control — giving Boss Automation an opportunity to position itself as a complete injection molding technology partner for manufacturers.
Related Products
- Injection Molding Machine
- Servo Injection Molding Machine
- Plastic Injection Molding Machine
- PP Injection Molding Machine
- PET Injection Molding Machine
- PVC Injection Molding Machine
- High Speed Injection Molding Machine
- Fully Automatic Injection Molding Machine
- Food Container Injection Molding Machine
- View all products
Request a Quote
Looking for a toggle injection molding machine for your plastic manufacturing operation? Share your:
Product → Material → Product Weight → Mold → Cavity Count → Production Target → Automation Requirement
Our technical team can evaluate your application and help determine the appropriate machine configuration.
Contact Boss Automation
